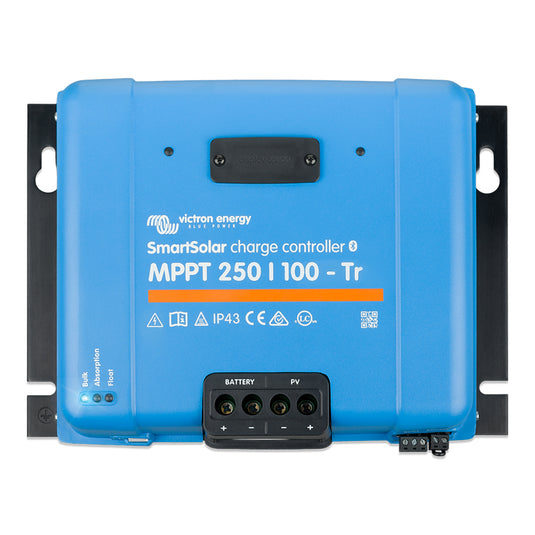

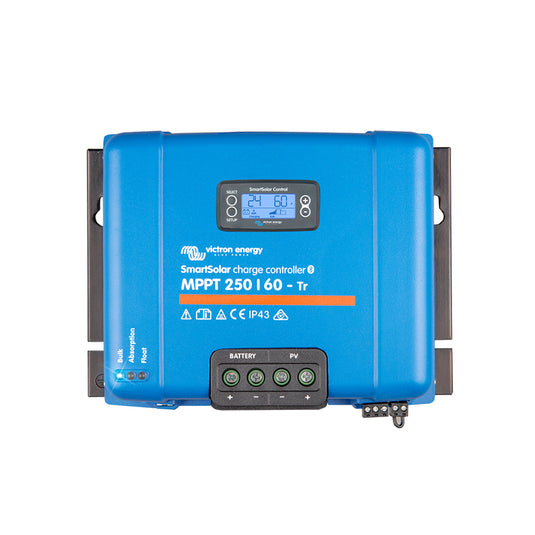

Victron SmartSolar MPPT Controller (250/60 & 250/100)

$1,250.00
Tax included. Shipping calculated at checkout.
Size
PAYMENT OPTION:

Ultra-fast Maximum Power Point Tracking (MPPT)

In the case of a cloudy sky, when light intensity is changing continuously, the Victron Energy SmartSolar MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan required. Maximum efficiency exceeds 99%.

Flexible charge algorithm

Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch.

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Bluetooth Smart built-in

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

 Programmable relay

Can be programmed (a.o. with a smartphone) to trip on an alarm.

Optional: pluggable LCD display

Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display

Model SSV MPPT 250/60A-TR
SSV MPPT 250/100-TR
Rated Charge Current
60A
100A
Nominal PV Power - 12V
860W
1450W
Nominal PV Power - 24V
1720W
2900W
Nominal PV Power - 48V 3440W 5800W
Max. PV Short Circuit Current
35A
70A
Maximum PV Open Circuit Voltage 250V
250V

 Specifications (all models):

  • Battery Voltage: 12/24/48V
  • Peak Efficiency: 99%
  • Charge Voltage (Absorption): 14.4 / 28.8V / 57.6V (adjustable)
  • Charge Voltage (Float): 13.8 / 27.6V / 55.2V (adjustable)
  • Protection: Battery reverse polarity (fuse), PV reverse polarity, Output short circuit, Over temperature
  • Operating Temperature: -30 to +60°C
  • Data Communication Port: VE.Direct or Bluetooth
  • Dimensions:
    • 250/60A: H185 x W250 x D95
    • 250/100A: H216 x W295 x D103
  • Weight:
    • 250/60A: 3Kg
    • 250/100A: 4.5Kg
  • Ultra fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading
  • Outstanding Conversion Efficiency
  • Extensive Electronic Protection
  • Internal Temperature Sensor
  • Flexible charge algorithm
  • Bluetooth Smart Built-in

5 Year Warranty
